Description
We provide used parts "中古 付属品" and complete machines.
Optional license and software version.
i can help configure basic configuration and backup configuration restoration.
we provide test reports,and you can choose to test remotely.
hardware Optional hardware Optional
DC/AC single/duel power supplies

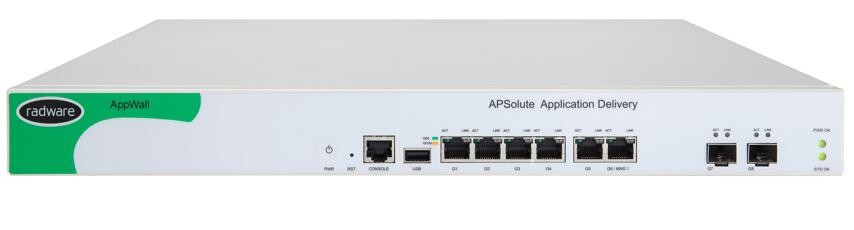

AppDirector 4008 XL
license optional
Global 、Cookie 、ssl、compression eth...
TEST info
AppDirector#sys de
Device Information
Type: AppDirector Global with Cookie Persistency
Platform: OnDemand Switch VL
Ports: 8
Ports Config: 6 Copper Giga Ethernet + 2 Giga Ethernet
HW Version: A.6
SW Version: 2.14.06
Build: Jul 1 2012, 12:34:23 (Build: 2)
Throughput: Limited to 4Gbps
SSL CPS: 500
Compression: 100 Mbps on server side
SSL Peak CPS: 0
Compression Peak Usage Mbps: 0
Version State: Final
APSolute OS: 10.31-08.15:2.06.10
Network Driver: 11.64.051
RAM Size: 4 GB
Flash Size: 96 MB
Hard Disk(s): 1
SSL Card: Not installed
Compression Card: Not installed
Serial Number: 31105xxxx-1
Date: 30.11.2018
Time: 15:28:14
Up Time: 0 days, 0 hours, 5 minutes, 55 seconds
Base MAC: 00:03:b2:8xxxx
Active Boot: 6.03
Secondary Boot: 6.03
Power Supply: One Power Supply Failed
Number of Cores: 4
Number of CPUs: 1
AppDirector#system license
License key : appdirector-global-cookie-m8LFsxDV
MAC address : 0003bxxx
License ID : 393-66c-4fe
AppDirector#system throughput-license
License key : 4Gbps-QgWIS93B
MAC address : 0003b286xxxx
License ID : 1eb-61a-41c
License key : appdirector-ssl-500-RJQFzfeF
MAC address : 0003b28xxx
License ID : 898-0fe-d05
AppDirector#sys compression-license
License key : appdirector-compression-100-YbQJloKy
MAC address : 0003b286xxx
License ID : b12-890-ef8
AppDirector#sys log
Log file is empty
AppDirector#sys sw-version
AppDirector Global with Cookie Persistency 2.14.06 (Jul 1 2012, 12:34:23)
AppDirector#sys os cpu
Device Resource Utilization
RS Resource Utilization : (0)%
RE Resource Utilization : (0)%
Last 5 sec. Average Utilization : (0)%
Last 60 sec. Average Utilization : (0)%
Master Utilization : (0)%
Acceleration-Engine Cores
ccel-Engine system 1 total memory: (10)%
Accel-Engine id 1 CPU (100)%
Accel-Engine id 2 CPU (0)%
Accel-Engine id 3 CPU (0)%
AppDirector#sys hardware temperature-show
Sensor number: 0 - Status: normal, Temperature: 26
Sensor number: 1 - Status: normal, Temperature: 20
Sensor number: 2 - Status: normal, Temperature: 21
AppDirector#30-11-2018 15:29:16 INFO Port G-1 Up
AppDirector#30-11-2018 15:29:18 INFO Port G-1 Down
AppDirector#30-11-2018 15:29:21 INFO Port G-2 Up
AppDirector#30-11-2018 15:29:23 INFO Port G-2 Down
AppDirector#30-11-2018 15:29:27 INFO Port G-3 Up
AppDirector#30-11-2018 15:29:29 INFO Port G-3 Down
AppDirector#30-11-2018 15:29:43 INFO Port G-4 Up
AppDirector#30-11-2018 15:29:46 INFO Port G-4 Down
AppDirector#30-11-2018 15:29:51 INFO Port G-5 Up
AppDirector#30-11-2018 15:29:53 INFO Port G-5 Down
AppDirector#30-11-2018 15:29:58 INFO Port G-6 Up
AppDirector#30-11-2018 15:30:00 INFO Port G-8 Up
AppDirector#30-11-2018 15:30:02 INFO Port G-8 Down
AppDirector#30-11-2018 15:30:05 INFO Port G-7 Up
AppDirector#30-11-2018 15:30:08 INFO Port G-7 Down
AppDirector#30-11-2018 15:30:19 INFO Power supply fully operational
AppDirector#30-11-2018 15:30:19 INFO Port G-6 Down
AppDirector#30-11-2018 15:30:24 INFO Port G-1 Up
AppDirector#30-11-2018 15:30:28 INFO Port G-1 Down
AppDirector#30-11-2018 15:30:32 INFO Port G-1 Up
