Description
We provide used parts "中古 付属品" and complete machines.
Optional license and software version.
i can help configure basic configuration and backup configuration restoration.
we provide test reports,and you can choose to test remotely.
hardware Optional hardware Optional
DC/AC single/duel power supplies

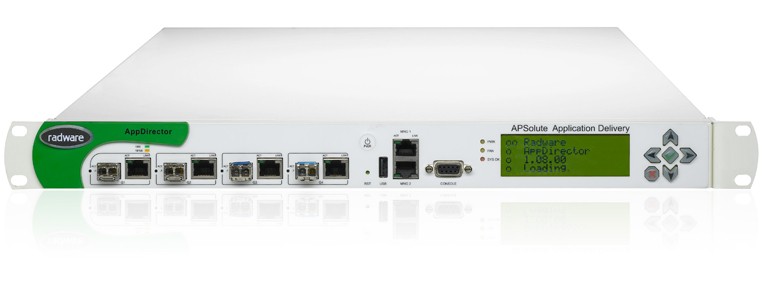

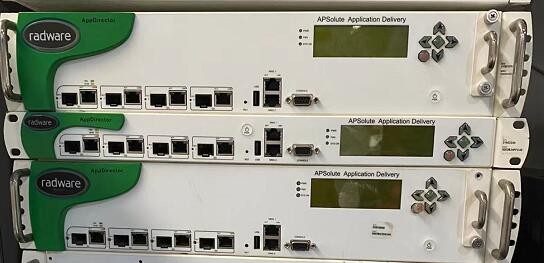

AppDirector 1004 XL 5000SSL
license optional
Global 、Cookie 、ssl、compression eth...
TEST info
AppDirector#sys de
Device Information
Type: AppDirector Global with Cookie Persistency
Platform: OnDemand Switch 1
Ports: 4 Gigabit Ethernet Ports (Copper or Fiber)
Ports Config: 4 Gigabit Ethernet Ports (Copper or Fiber)
HW Version: A.6
SW Version: 2.14.06
Build: Jul 1 2012, 12:34:23 (Build: 2)
Throughput: Limited to 1Gbps
SSL CPS: 500
Compression: 100 Mbps on server side
SSL Peak CPS: 0
Compression Peak Usage Mbps: 0
Version State: Final
APSolute OS: 10.31-08.15:2.06.10
Network Driver: 11.64.051
RAM Size: 4 GB
Flash Size: 96 MB
Hard Disk(s): 1
SSL Card: Not installed
Compression Card: Not installed
Serial Number: 31105xxxx-1
Date: 30.11.2018
Time: 15:28:14
Up Time: 0 days, 0 hours, 5 minutes, 55 seconds
Base MAC: 00:03:b2:8xxxx
Active Boot: 6.03
Secondary Boot: 6.03
Power Supply: One Power Supply Failed
Number of Cores: 2
Number of CPUs: 1
AppDirector#system license
License key : appdirector-global-cookie-m8LFsxDV
MAC address : 0003bxxx
License ID : 393-66c-4fe
AppDirector#system throughput-license
License key : 1Gbps-QgWIS93B
MAC address : 0003b286xxxx
License ID : 1eb-61a-41c
License key : appdirector-ssl-500-RJQFzfeF
MAC address : 0003b28xxx
License ID : 898-0fe-d05
AppDirector#sys compression-license
License key : appdirector-compression-100-YbQJloKy
MAC address : 0003b286xxx
License ID : b12-890-ef8
AppDirector#sys log
Log file is empty
AppDirector#sys sw-version
AppDirector Global with Cookie Persistency 2.14.06 (Jul 1 2012, 12:34:23)
AppDirector#sys os cpu
Device Resource Utilization
RS Resource Utilization : (0)%
RE Resource Utilization : (0)%
Last 5 sec. Average Utilization : (0)%
Last 60 sec. Average Utilization : (0)%
Master Utilization : (0)%
Acceleration-Engine Cores
ccel-Engine system 1 total memory: (10)%
Accel-Engine id 1 CPU (100)%
Accel-Engine id 2 CPU (0)%
For more information, please contact us.# Part Number Discontinued Product
1 19038008 AppDirector 4004 ODS1
2 19038007 AppDirector 2004 ODS1
3 19038003 AppDirector 1004 ODS1
4 19038002 AppDirector 504 ODS1
5 19038001 AppDirector 204 ODS1
6 19038014 AppDirector 4004 XL
7 19038013 AppDirector 2004 XL
8 19038012 AppDirector 1004 XL
9 19238008 AppDirector 4004 ODS1 - Dual Power Supply
10 19238007 AppDirector 2004 ODS1 - Dual Power Supply
11 19238003 AppDirector 1004 ODS1 - Dual Power Supply
12 19438003 AppDirector 1004 ODS1 - Dual DC Power Supply
13 19238002 AppDirector 504 ODS1 - Dual Power Supply
14 19238001 AppDirector 204 ODS1 - Dual Power Supply
15 19238014 AppDirector 4004 XL - Dual Power Supply
16 19238013 AppDirector 2004 XL - Dual Power Supply
17 19238012 AppDirector 1004 XL - Dual Power Supply
18 9038008 AppDirector 2004 - Upgrade to AppDirector 4004 - Software Option
19 9038007 AppDirector 1004 - Upgrade to AppDirector 2004 - Software Option
20 9038003 AppDirector 504 - Upgrade to AppDirector 1004 - Software Option
21 9038002 AppDirector 204 - Upgrade to AppDirector 504 - Software Option
22 9038017 AppDirector 2004 XL - Upgrade to AppDirector 4004 XL - Software Option
23 9038015 AppDirector 1004 XL - Upgrade to AppDirector 2004 XL - Software Option
24 9038030 AppDirector xx04 XL, xx16 XL on ODS 2 XL - SSL Acceleration - Upgrade from 10,000 CPS to 20,000 SSL CPS
25 9038023 AppDirector xx08 XL, xx04 XL, xx16 XL on ODS 2 XL, xx16 on ODS 3 v.2 - SSL Acceleration - Upgrade from 5,000 CPS to 10,000 SSL CPS
26 9038026 AppDirector xx08, xx04, xx16 - SSL Acceleration - Upgrade from 500 CPS to 2,000 SSL CPS - Software Option
27 9038041 AppDirector TSL base Authentication Support - Software Option
28 914820 AppDirector ODSx - Global Traffic Management - Software Option
29 9038049 AppDirector xx04, xx04 XL, xx08, xx08 XL, xx16 and xx16 XL Advanced Security - Software Option
30 9038056 AppDirector xx04, xx04 XL, xx08, xx08 XL, xx16 and xx16 XL - Bandwidth Management - Software Option
